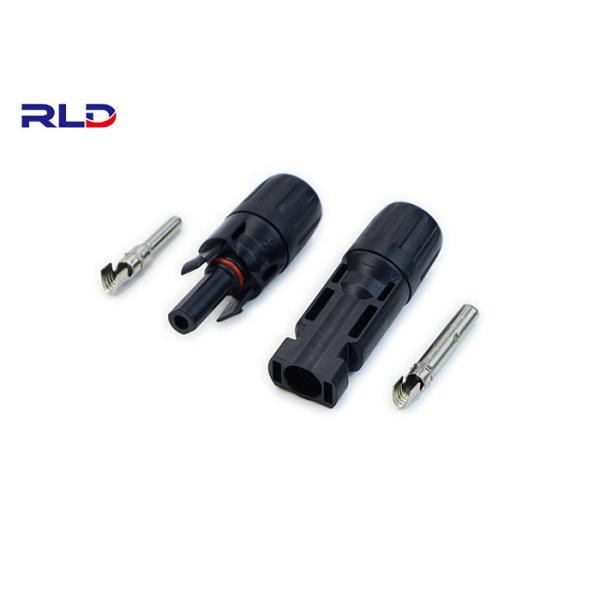

    Solar PV System Waterproof DC Plug IP68 MC4 Solar Connector

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : MC4
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram , Paypal
    Supply Ability : 100000pieces/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Solar PV System Waterproof DC Plug IP68 MC4 Solar Connector

    Solar PV System Waterproof DC Plug IP68 MC4 Solar Connector


    · Simple on-site processing

    · Mating safety provided by keyed housings

    · Mutiple plugging and unplugging cycles

    · Accomodates PV cable with deferent insulation diamaters

    · High Voltage and Current carrying capacity

    · TUV and CE approved

    · Competitive price


    Insulation Material:PPO

    Rated current:30A(2.5mm2),50A(4mm2,6mm2)

    Rated Voltage:1000V/1500V DC

    Test voltage: 8kV(50Hz,1min)

    Contact resistance:<5mΩ

    Waterproof protection:IP68

    Overvoltage degree:CATIII/2


    Contact material:

    Copper,Tin plated

    Insertion force:

    Max. 50N

    Withdrawal force:

    Min. 50N

    Ambient temperature range:

    -40℃~+85℃

    Connecting system:

    Crimping connection

    Suitable cable cross section:

    2.5/4/6mm2, 14/12/10AWG



    Technical date

    Pins numberRated CurrentRated VoltageContact ResistanceInsulation ResistanceIP LevelCable SpecificationsCable Range
    24A60VAC10mΩ200MΩIP67<0.5mm20-5mm
    34A60VAC10mΩ200MΩIP67<0.5mm20-5mm
    44A60VAC10mΩ200MΩIP67<0.5mm20-5mm
    54A60VAC10mΩ200MΩIP67<0.3mm20-5mm


    Questions & Answers


    Q1 : Can I have a sample for test ?

    Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .


    Q2 : How about the lead time ?

    Sample order need 3-5 working days , mess order need 15-20 working days .


    Q3 : Do you have certificates about the waterproof connectors ?

    Yes , we have got UL for T type series , CE for all waterproof connectors .


    Q4 : What payment can you accept ?

    We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .


    Q5 : Is that OK to print our Logo on your product and package ?

    Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .


    Q6 : Are you a factory ? Where is your factory ?

    Yes , we are a factory , we located in Shenzhen .


    Q7 : Do you accept OEM & ODM service ?

    Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.


    Q8 : How much does it cost to my country ?

    The freight will be given by fright company based on your Gross weight and CBM .


    Q9 : Can I order 100m cable for 1pc waterproof connector ?

    Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
